NQGX30-500大輸液灌裝 聯動線

產品詳情Product Details

用途與簡介/Purpose and introduction

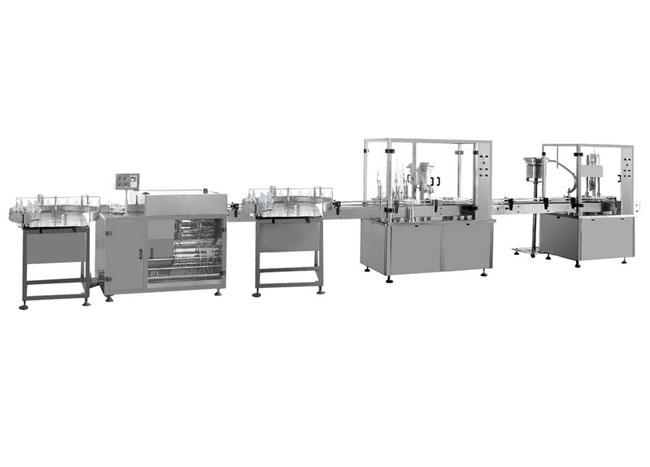

該生產線由理瓶機(上瓶臺)、超聲波洗瓶機,灌裝(旋蓋)加塞機,軋蓋機,貼標機等設備組成

On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment



特點/characteristic:

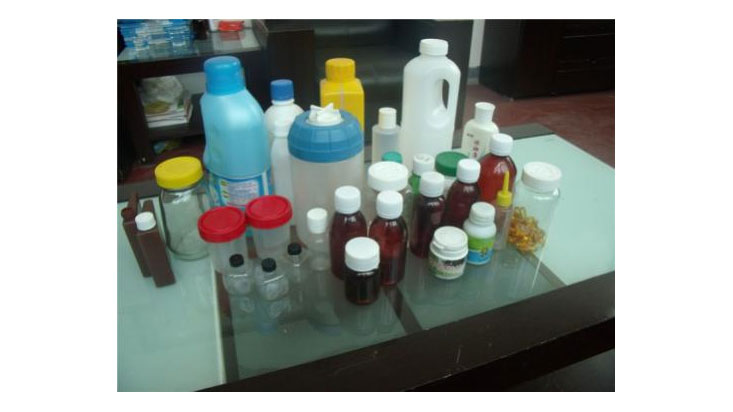

該生產線適合于 30-500ml系列產品的灌裝加塞封口,更換一些規格模具后,既適合于塑料瓶,也適合于玻璃瓶。具有適應范圍廣泛,調整方便的特點。整線生產能力;適瓶子大小形狀,物體粘度而定。

The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.


技術參數/technical parameters:

生產能力production capacity(pcs/h)

80-120(8針灌裝、6頭軋蓋
  40-60(4針灌裝、單頭軋蓋)

洗瓶潔凈度Washing bottle cleanliness(%)

> 99

裝量誤差The load error(%)

0-2

上塞合格率Plug on the percent of pass(%)

> 98

軋蓋合格率Rolling cover percent of pass(%)

> 98

功率power(kw)

11

外形尺寸boundary dimension(LxWxH)   (mm)

9.740 × 1,470 × 1,785



?
